<universal-write-diff>

A web component for comparing .docx documents side by side, in the self-contained @universal-office/compare package (no dependencies, no fonts needed). It aligns blocks with Myers/histogram, refines changes word by word within a paragraph, and distinguishes content changes from format-only changes.

Usage

<universal-write-diff id="wd" view="all" left-label="Original" right-label="Modified"></universal-write-diff>

import '@universal-office/compare';

const wd = document.getElementById('wd');

// From the bytes of two .docx files:
wd.loadPair(aBytes, bBytes, { leftLabel: 'v1.docx', rightLabel: 'v2.docx' });

// Or from documents already parsed by the document core:
import { DocxPackage, readFullDocument } from '@universal-office/compare';
const aDoc = readFullDocument(DocxPackage.load(aBytes));
const bDoc = readFullDocument(DocxPackage.load(bBytes));
wd.loadDocuments(aDoc, bDoc, { leftLabel: 'v1', rightLabel: 'v2' });

Attributes

Properties and methods

Events

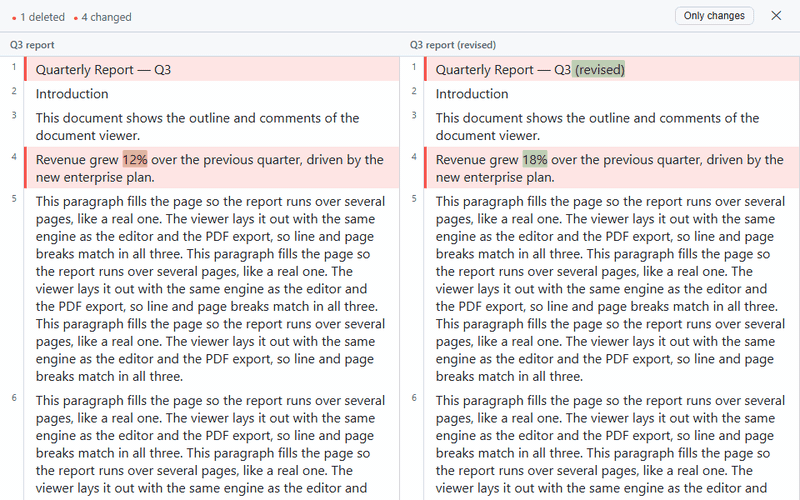

How the diff is displayed

• Single grid, unified scroll. Both sides live in a single 4-column CSS grid (A numbering · A content · B numbering · B content). Aligned blocks occupy the same grid row — vertical alignment is automatic, with no JavaScript scroll syncing.
• Selectable text. The diff is rendered in the DOM (not canvas), so you can copy ranges.
• Word-by-word refinement. Changed blocks (change) get word-level insertion/deletion marks within the paragraph. If the two texts share no words at all, no intra marks are emitted — avoiding visual noise.
• Nested table diffing. When both sides of a change are tables, rows are aligned individually — inserted, deleted, or changed rows are highlighted within the table.
• Image equality by byte. Two images are equal if and only if their bytes are identical. Resizing an image (same bytes) counts as formatting, not content.
• Content vs. formatting. Blocks with identical text but different formatting become a change with formatOnly: true and importance: 'minor' — shown in blue (instead of red) and counted separately in the header (✎ N formatting), without breaking the alignment of the other blocks.

Recipe: "Compare with…" next to the editor

This is the flow used by the Write desktop app: serialize the editor's current state and compare it with a file chosen by the user.

async function compareWith(file) {
  const other = new Uint8Array(await file.arrayBuffer());
  const current = await editor.save('docx');   // current state of <universal-write>

  wd.loadPair(current, other, {
    leftLabel: 'Current document',
    rightLabel: file.name,
  });

  editor.style.display = 'none';
  wd.style.display = 'flex';
}

wd.addEventListener('close-request', () => {
  wd.style.display = 'none';
  editor.style.display = '';
});

Programmatic API

Besides the web component, @universal-office/compare exports the diff engine for direct use (reports, pipelines, CI):

import { diffDocuments, DocxPackage, readFullDocument } from '@universal-office/compare';

const a = readFullDocument(DocxPackage.load(aBytes));
const b = readFullDocument(DocxPackage.load(bBytes));

const { edits, stats } = diffDocuments(a, b, {
  algorithm: 'histogram',  // default; 'myers' also available
  intraWord: true,         // word-by-word refinement (default)
});

console.log(`+${stats.inserted} −${stats.deleted} ~${stats.changed} ✎${stats.formatOnly}`);

Functions

Types

interface DocDiff {
  edits: DocEdit[];
  stats: DocDiffStats;
}

interface DocDiffStats {
  inserted: number;    // inserted blocks
  deleted: number;     // removed blocks
  changed: number;     // blocks with changed content
  formatOnly: number;  // blocks with format-only changes
  equal: number;       // unchanged blocks
}

interface DocEdit {
  kind: 'equal' | 'insert' | 'delete' | 'change';
  a: BlockRange;          // 1-based range in doc A (end = start - 1 → empty)
  b: BlockRange;          // 1-based range in doc B
  aBlocks: number[];      // 0-based indices in a.blocks
  bBlocks: number[];      // 0-based indices in b.blocks
  formatOnly?: boolean;   // content equal, only formatting changed
  importance?: 'important' | 'minor';   // 'minor' when formatOnly
  intra?: DocIntraEdit[]; // word-level marks (important changes)
  tableRows?: (TableRowEdit[] | null)[]; // nested diff of table rows
}

interface DocIntraEdit {
  kind: 'insert' | 'delete';
  side: 'a' | 'b';
  pairOffset: number;  // index of the aligned pair in aBlocks/bBlocks
  startCh: number;     // inclusive UTF-16 offset in the paragraph text
  endCh: number;       // exclusive UTF-16 offset
}

interface TableRowEdit {
  kind: 'equal' | 'insert' | 'delete' | 'change';
  aRows: number[];       // 0-based indices in table A's rows
  bRows: number[];       // 0-based indices in table B's rows
  formatOnly?: boolean;
}

interface DocDiffOptions {
  algorithm?: 'histogram' | 'myers';  // default: 'histogram'
  intraWord?: boolean;                // default: true
}
